The Chassis

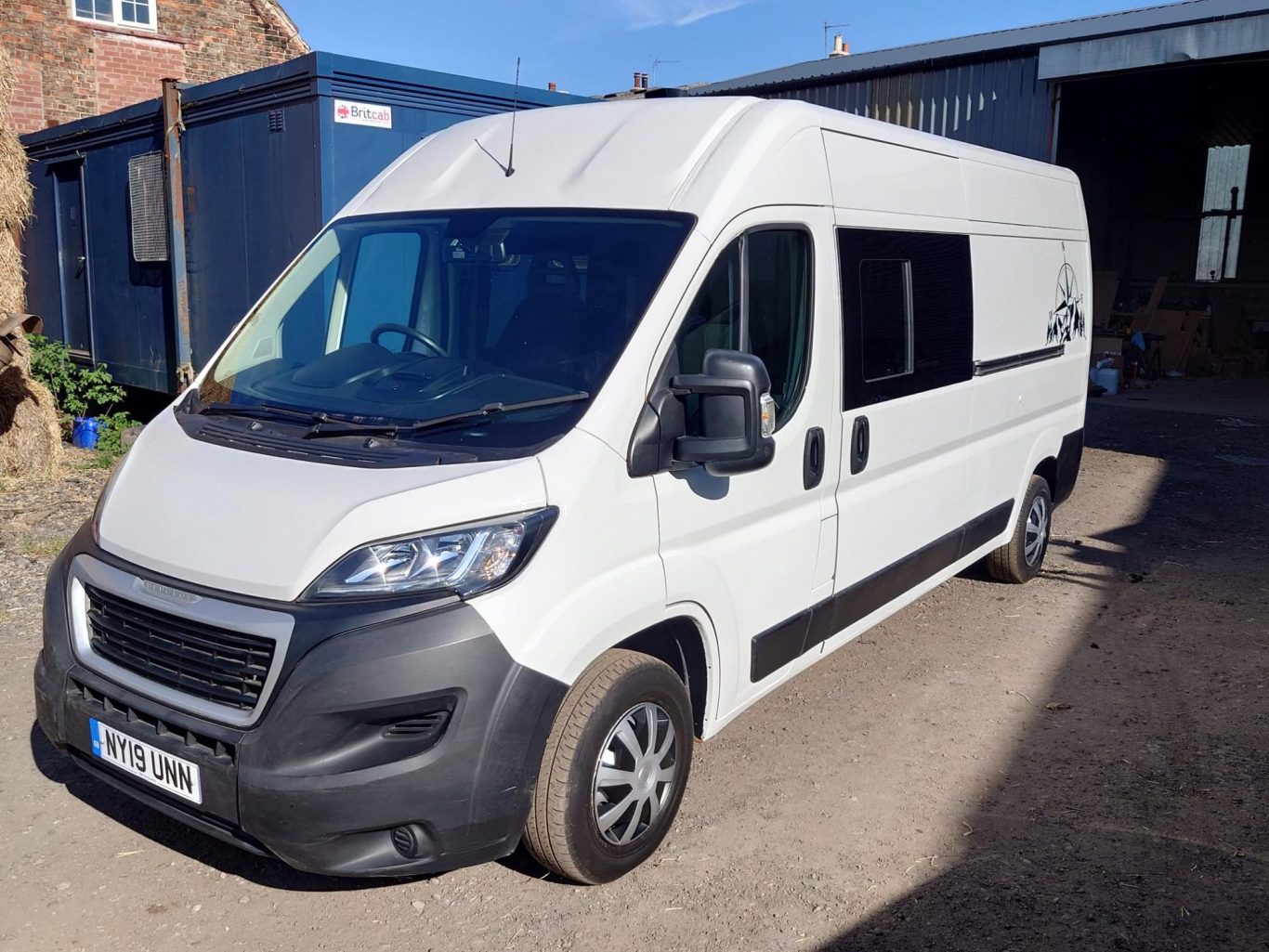

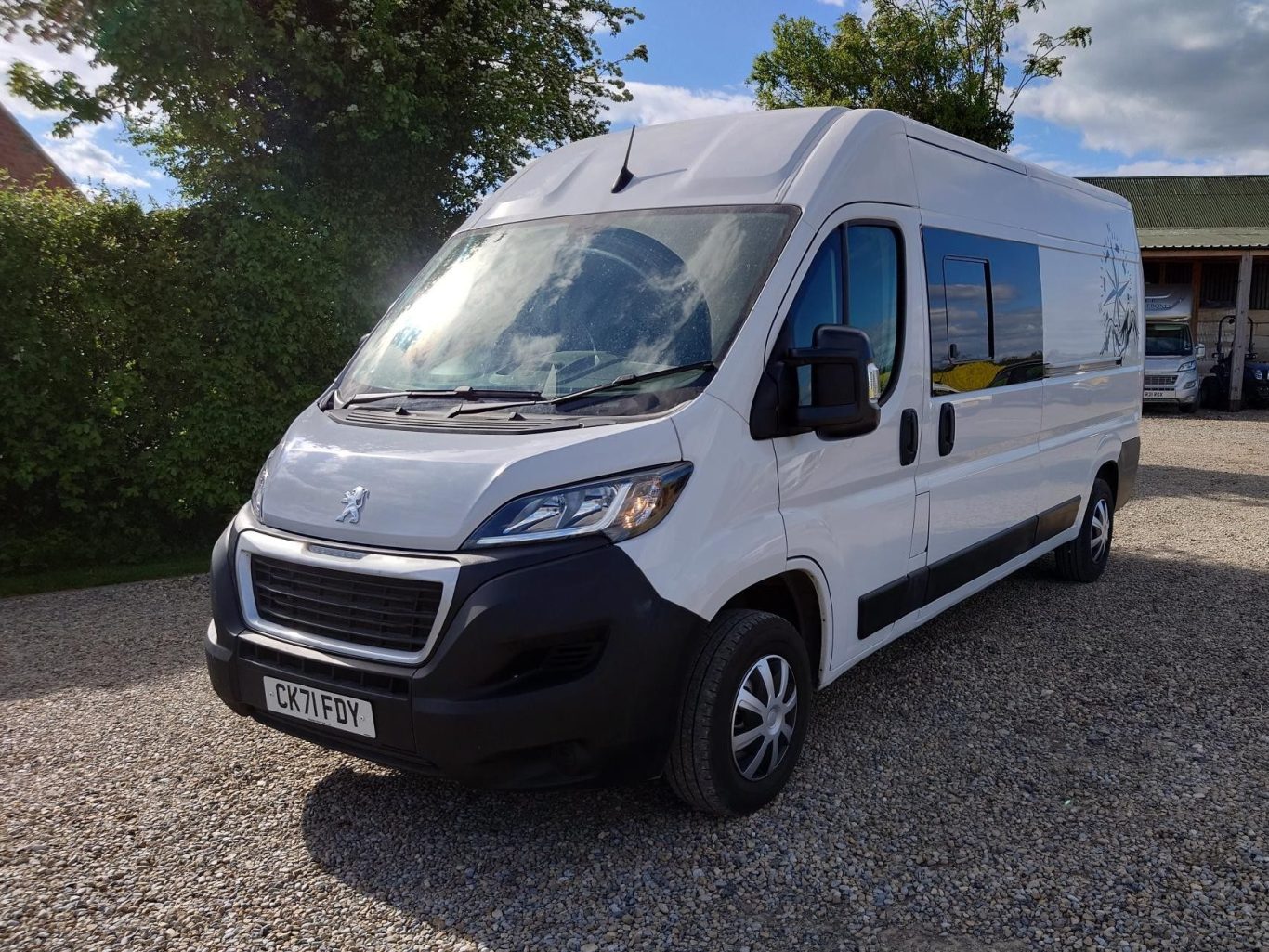

This camper is based on the popular Peugeot chassis in the L3H2 format with 2.2 HDI engine with 59000 miles. Up front there are 2 swivel captains chairs, air conditioning, bluetooth, built in SatNav and DAB radio, cruise control, electric windows and mirrors, twin lens reversing camera and it comes with the 6 speed manual gearbox. The camper will be sold with a full 12 months MOT and full service.

Layout

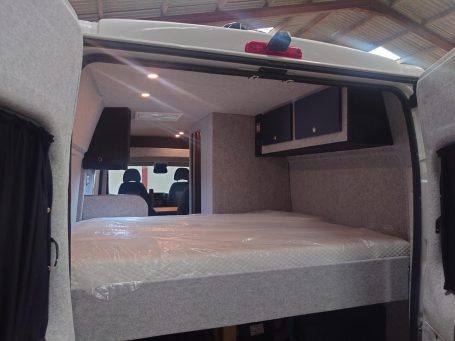

2 Berth end bedroom, fixed standard double bed with widthways orientation, 194cm head to end total length, storage underneath with access from barn doors and interior through loading door. Additional storage lockers above foot end of the bed which also houses 12v and single 240v sockets and a TV point. TV bracket mount area. There is a roof mounted 360 degree Maxxview aerial with variable gain controller housed in the above bed storage cupboard.

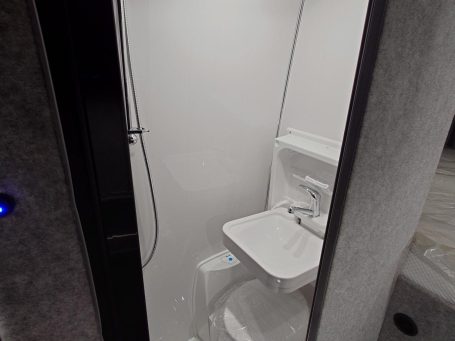

Mini wet room with shower, fold down sink unit and cassette toilet (18 Litre capacity), accessed through sliding tabour door. Features blown air outlet, removable clothes rail and dome vent fan.

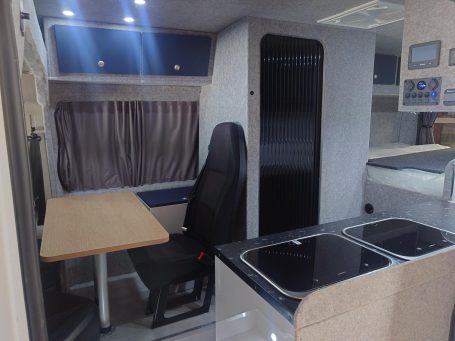

Kitchenette with work surface, sink with hot and cold water. Portable Induction hob, lower wattage kettle and microwave underneath. Three storage cupboards with the upper housing the main controls for the camper systems - electrics, heating, water tanks and inverter remote as well as the connectionpoint for optional All SIM WiFi router. Area includes ceiling mounted FIAMMA Turbo Vent extractor fan. Opening window with blackout curtains on the sliding door.

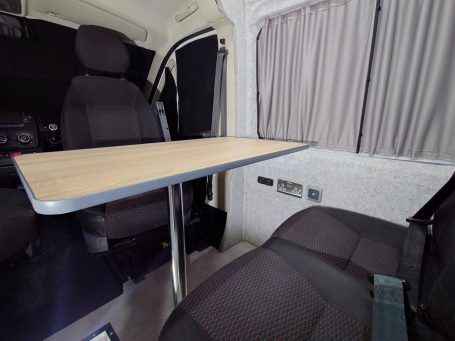

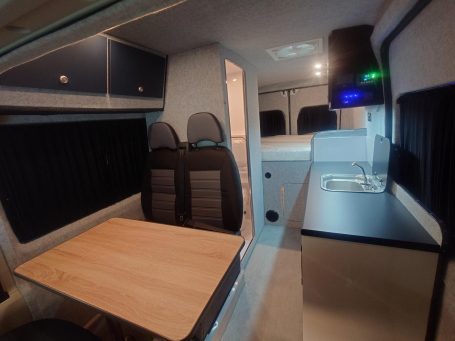

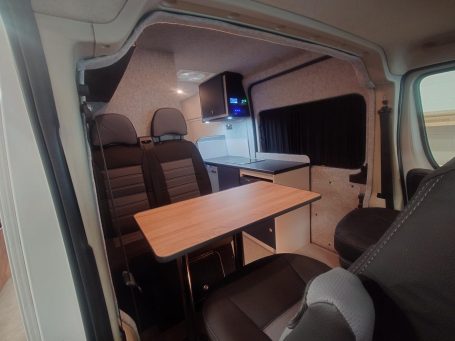

Dining area consists of twin swivel captains chairs from the driving cabin and two seater bench (4 belted seats in total) with storage cupboard beneath and removable 900mm x 500mm table. Dining area also provides 12v and 240v sockets and TV point with bracket mounting area above the two seater bench and opening window with blackout curtains.

Water system

Main fresh water tank: 100 Litres mounted above the off side wheel arch, fill point external hose pipe fitting backfill with isolator valve.

Grey water tank: Underslung linked 75 and 20 litre tanks, single outlet, insulated with steel protective undertrays fed from the shower, fold down bathroom sink and kitchen sink.

Cassette toilet: Thetford brand, 18 litre capacity with electric flush fed from the main fresh water tank. Emptying via external door on the off side of the vehicle.

Hot water: Provided by the Truma combi boiler and fed to the shower and fold down sink in the bathroom as well as kitchen sink, boiler has integral 10 litre hot water tank

Heating system

Cabin heating and hot water provided by the Truma Combi D4E boiler. This modern and efficient boiler is dual fuel with combined output of up to 4800w. Can be run from either the 240v hookup, the main fuel tank or both, controlled from the main panel in the camper or via bluetooth. The heater is connected and controlled via the 12v system but only draws for the electric heating element from a mains hookup.

Features 4 blown air outlets for effective heat distribution, thermostatically controlled with "night function" fan allowing for super quiet operation while you sleep.

The Truma boiler has an integrated 10 litre hot water tank with high and low temperature settings providing a constant supply for comfortable showering and washing.

Electric system

Features 3 way charging combined with 460Amp LiFePO4 leisure battery and 3000W UPS (uninterrupted power supply) inverter.

The charging system comprises 40AMP DC-DC charger to take power from the alternator, this charger includes reverse charging to keep the starter battery topped up, with boost function. A seperate MTTP charger controls the 390w solar panels and the 3KW Inverter incorporates a 100AMP mains charger.

The inverter system provides power to all of the 240v sockets in the camper and will change automatically between feeding from the 240v mains hookup and the leisure battery when off grid, both the inverter off grid system and the mains hookup system are RCD protected circuits.
